Air spring systems for Industrial Applications

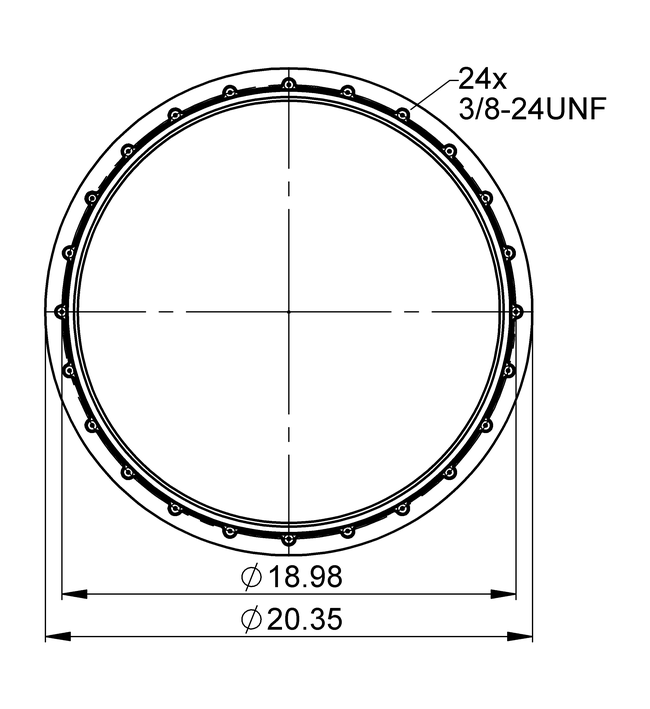

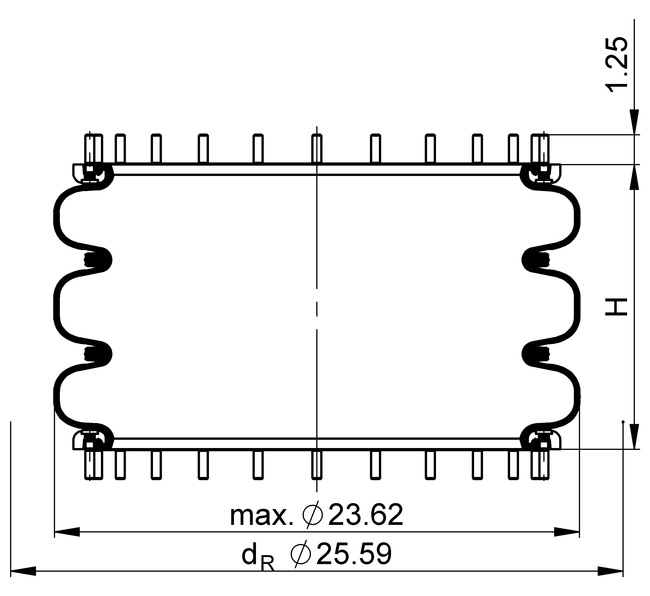

  • Technical Drawing
    Air Spring Air Spring
    Air Spring
    Spotted

    Use in dotted range >16.50 in. only after consultation with ContiTech

  • Technical data
    Min. pressure 0 psi
    Return force to min. height ≤ 90 lbf
    Overall weight 32.0 lb

    • Min. pressure 0 psi

      Return force to min. height ≤ 90 lbf

      Overall weight 32.0 lb

  • Pneumatic application - static characteristic values
    Force F [lbf]
    Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
    H 15.00 in. 9640 14700 19700 24800 29700 4400
    H 13.50 in. 10700 16200 21500 27200 32700 4000
    H 12.00 in. 11700 17300 23000 29000 34900 3600
    H 10.50 in. 12400 18400 24400 30700 36800 3100
    H 9.00 in. 12600 19200 25600 32000 38400 2700
    H 7.50 in. 13200 20000 26700 33400 40000 2200
    H 6.00 in. 13900 21000 27900 35000 42200 1700

  • Purchase order data
    Type Air Inlet Order No.

    rubber bellows only

    		– 61784

    with bead rings, 1 7/8in bolts, nuts and washers

    		– 75398

    CAD Data

    • Type

      Air Inlet –

      Order No. 61784

    • Type

      Air Inlet –

      Order No. 75398

  • Service instructions
    Thread max. Torque
    3/8-24 UNF 30 lbf ft

    • 3/8-24 UNF 30 lbf ft
