Air spring systems for Industrial Applications

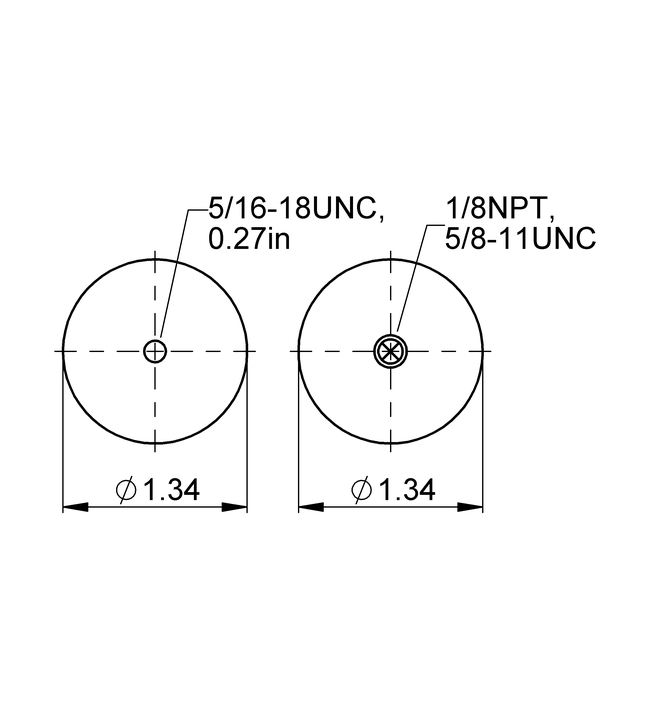

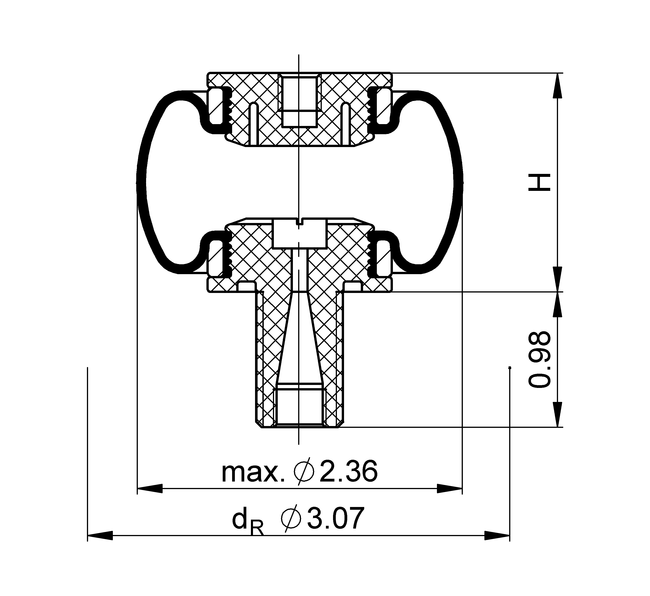

  • Technical Drawing
    Air Spring Air Spring
    Air Spring
    Spotted

    Use in dotted range >2.20 in. only after consultation with ContiTech

  • Technical data
    Min. pressure 0 psi
    Return force to min. height ≤ 10 lbf
    Overall weight 0.2 lb

    • Min. pressure 0 psi

      Return force to min. height ≤ 10 lbf

      Overall weight 0.2 lb

  • Pneumatic application - static characteristic values
    Force F [lbf]
    Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
    H 2.25 in. 61 86.3 114 143 170 4.7
    H 2.00 in. 80.6 115 153 190 225 4.3
    H 1.75 in. 95.5 139 184 228 269 4
    H 1.50 in. 106 155 204 252 299 3.5

  • Purchase order data
    Type Air Inlet Order No.

    with plastic connecting parts

    		1/8 NPT
    A = 0 in. excentrical     		63578

    CAD Data

    • Type

      Air Inlet 1/8 NPT_hand; 0in. excentrical

      Order No. 63578

  • Service instructions
    Thread max. Torque
    5/16-18 UNC 4 lbf ft
    5/8-11 UNC 10 lbf ft
    1/8 NPT Handtight plus one turn

    • 5/16-18 UNC 4 lbf ft

    • 5/8-11 UNC 10 lbf ft

    • 1/8 NPT Handtight plus one turn
