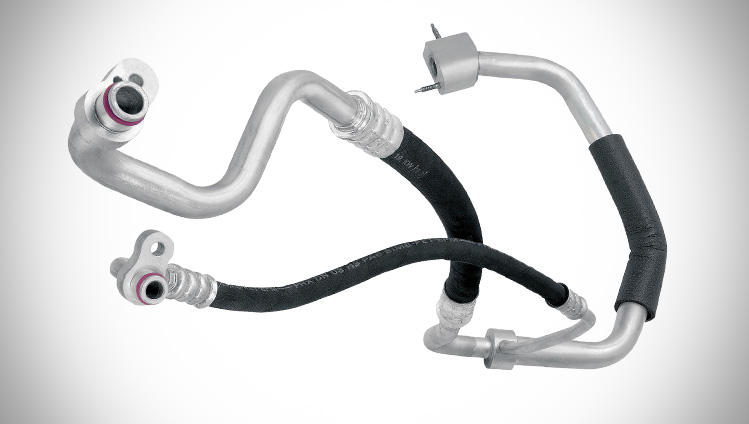

    Hose line with IHX

  • Suction line

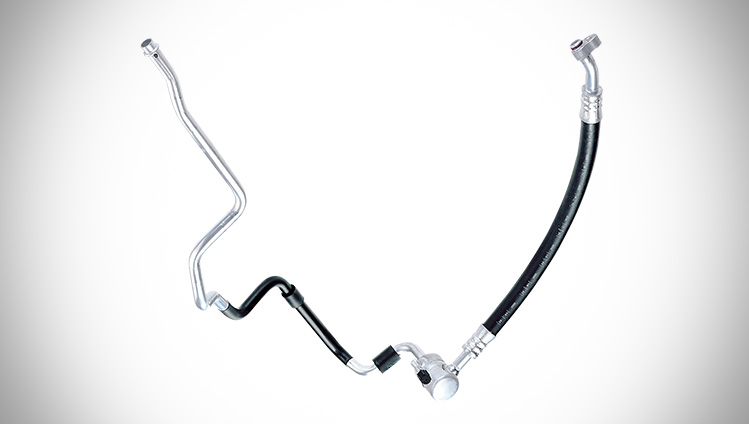

    Suction line

  • Liquid line

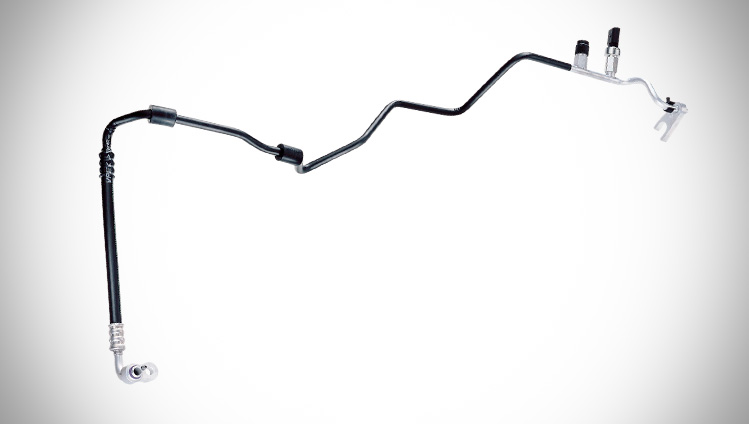

    Liquid line

  • Hot gas line

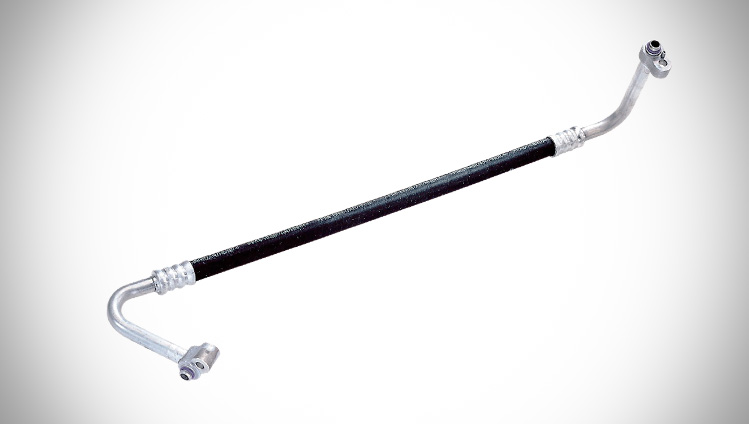

    Hot gas line

Innovative Future Technologies – the New ECO AC System

Comprised of air conditioning lines and an internal heat exchange unit, the redesigned ECO AC product range ups the efficiency of air conditioning units. It also reduces the weight of the unit and the amount of refrigerant used.

1 | Hot gas line with ultra-low-emission hose

2 | Suction line with pressure-loss-reducing integration

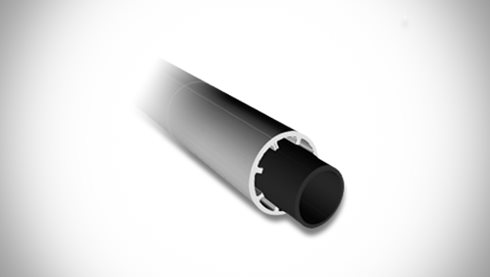

3 | Integrated heat exchanger to increase performance

4 | SLSW connection technology



Benefits of the ECO AC system

  • Less refrigerant thanks to reduced interior volume
  • Reduced weight as less material is used
  • Less clearance required for installation
  • Better acoustics thanks to reduced hose stiffness
  • Increased cooling capacity as a result of reduced pressure loss
  • Material compatibility tested for R1234yf & R134a

Product Range at a Glance

  Hot gas line Liquid line Suction line
Available models Aluminium Aluminium Aluminum
Dimensions DN 10, DN 13 DN 6, DN 8 DN 13, DN 16,
DN 17,5, DN 19
Temperature Up to 160°C Up to 140°C Up to 140°C
Connection elements O-ring seal
SLSW technology
Block connection
Flange solutions
Quick connectors
O-ring seal
SLSW technology
Block connection
Flange solutions
Quick connectors
O-ring seal
SLSW technology
Block connection
Flange solutions
Quick connectors
Specifications Ultra low emission classification (SAE)
Available by the meter
Molded hoses
Pressure switches
Filling connections
Insulation
Attachments
Available by the meter
Molded hoses
Muffler
Filling valves
Sensors
Filling connections
Insulation
Attachments
Available by the meter
Molded hoses
