DIN 74310 4-Spiral Air Brake Hose

Application

DIN 74310 4-Spiral Air Brake Hose

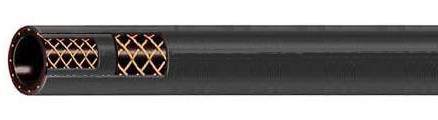

DIN 74310 4-spiral air brake hose
Tube: EPDM | REINFORCEMENT: PET | COVER: EPDM

  • 4-Spiral polyester reinforcement
  • Embossed branding for easy identification
  • Extremely flexible under wide temperature range
  • Temperature range -40 °F to 158 °F (-40 °C to 70 °C) per DIN 74310

Size Inside Diameter Outside Diameter Weight Min. Burst
Inch mm Inch mm
mm min. max. min. max. min. max. min. max. lbs./ft. kg/m psi bar
11 0.413 0.453 10.5 11.5 0.689 0.728 17.5 18.5 0.12 0.18 600 40
13 0.488 0.535 12.4 13.6 0.969 1.000 24.5 25.5 0.32 0.48 600 40
