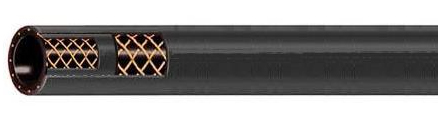

SAE J1402A Low Temp Air Brake Hose

Application

SAE J1402A Low Temp Air Brake Hose
SAE J1402A low temp air brake hose
TUBE: EPDM | REINFORCEMENT: PET | COVER: EPDM

  • Tube/cover: black EPDM
  • 4-spiral polyester reinforcement
  • Meets DOT FMVSS-106 requirements
  • Temperature range -65 °F to +200 °F (-54 °C to +93 °C)

Size Inside Diameter Outside Diameter Weight
Inch mm Inch mm
Inch mm min. max. min. max. min. max. min. max. lbs./ft. kg/m
3/8 10 0.352 0.398 8.9 10.1 0.719 0.781 18.3 19.8 0.17 0.25
1/2 12.5 SP 0.469 0.531 11.9 13.5 0.844 0.906 21.4 23.0 0.21 0.35
