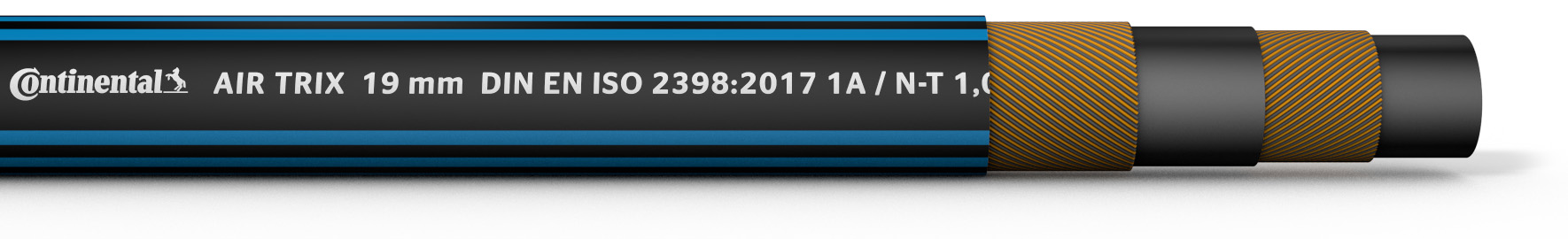

AIR TRIX^®

The high quality hose for compressed air

STANDARD / APPROVAL

2398:2017 1A

APPLICATIONS

Agriculture, Compressed air and compressor manufacturers, Construction industry, Garages, Installation and heating system companies, Machinery and plant engineering, Mining industry, Over- and underground workings, Petrol stations, Quarry, Shipyards, Steel and iron industry, Steel construction, Workshops

FLOW MEDIUM

Compressed air, Pressurized air

INNER LINING

SBR, black, non-porous, smooth

REINFORCEMENTS

Synthetic fibres

COVER

SBR, black, smooth, ozone-resistant

FURTHER PROPERTIES

Working pressure up to 10 bar / 145 psi (air)

WORKING PRESSURE UP TO

10 bar / 145 psi

TEMPERATURE RANGE

from -25 °C / -13 °F up to +80 °C / +176 °F

nominal width	inner-Ø	wall thickness	length	working pressure	min. burst pressure	min. bending radius	weight
zoll/inch	mm	mm	m	bar/psi	bar/psi	aprx. mm	aprx. g/m
3/8	10	5.0	40	10/145	40/580	70	340
1/2	12	5.0	40	10/145	40/580	80	410
5/8	16	5.0	40	10/145	40/580	100	560
3/4	19	5.0	40	10/145	40/580	150	690
1	25	6.0	40	10/145	40/580	185	1,000

_{Temperature resistance applies only to materials used / All technical data apply at room temperature}
