Hybrid Hose Solution for H₂ Fuel Dispensing Stations

At Continental we combined our traditional experience and know how in rubber solution with the competence in thermoplastic materials, to develop the first veneer hose for hydrogen dispensing hose applications.

The state-of-the-art dispensing hoses are made of thermoplastic internal and external liners and steel reinforcement, flexibility, adhesion between the layers and finally time duration are the main pain points with such solutions.

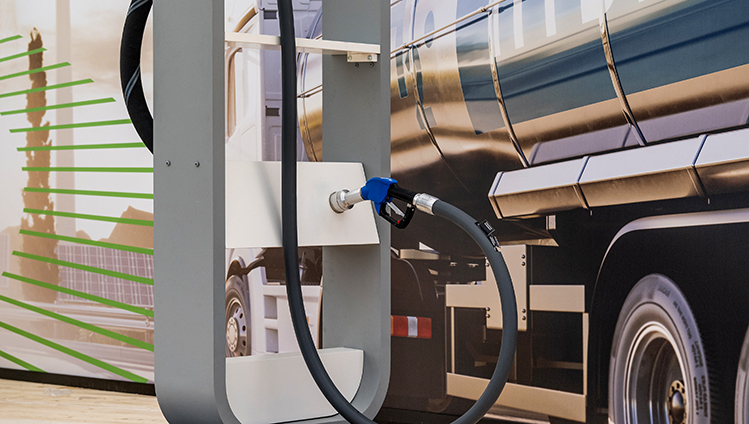

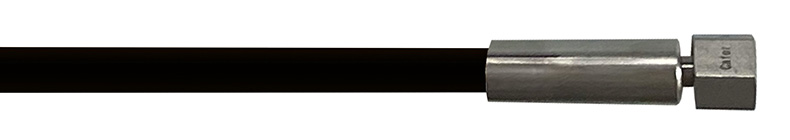

The Continental hydro(next)gen hose is a unique hybrid solution combining a highly impermeable thermoplastic inner liner with a steel reinforcement to withstand pressures of up to 700 bar and a rubber-based outer cover to provide a more comfortable flexibility for the convenient insertion of the fueling nozzle into the vehicle, assuring a longer life span to the product. With more than two years worth of careful evaluation, selecting the right materials, testing and prototyping we ensure the best material solution for each and every industry and use case in close collaboration with our customers.


Fueling the Energy Transition

• Hydrogen is seen as an important piece of the puzzle for the sustainable transformation of energy-intensive industries as well as commercial vehicles, passenger cars and off-highways vehicles.
• With the Hydro(next)gen hose Continental ensures the efficient and safe handling of hydrogen in the 700 bar dispensing stations.
• Such very high pressure is required to assure storage of H₂ for the long range at a reduced loading time.

Properties

Temperature range: -40 °C to +65 °C

Working pressure: Max. 700 bar

Min Burst pressure: >= 3500 bar

Electrical resistance: R < 1KΩ hose fitting to fitting

H2-Leakage rate: < 20ml/h per ISO 19880-5. Chapter 7.2

H2-Permeationsrate: < 500ml/m.h per ISO 19880-5. Chapter 7.12

H2-Impulse capablity: no blistering shall be observed and passed tensile strength, waterproof & hydrogen leakage test.

Hydrostatic capability: Proof test: without bursting and visible loss of fluid under 140MPa pressure
Ultimate Strength: without bursting and visible loss of fluid under 350Mpa
Burst pressure is 378MPa.Meet the minimum burst pressure 350MPa

Label: Continental Hydrogen Hose H70 / DN6 / ISO 19880-5 / Month Year / Batch No

Regulations / Standards: ISO19880-5, DN6 H70 grade
