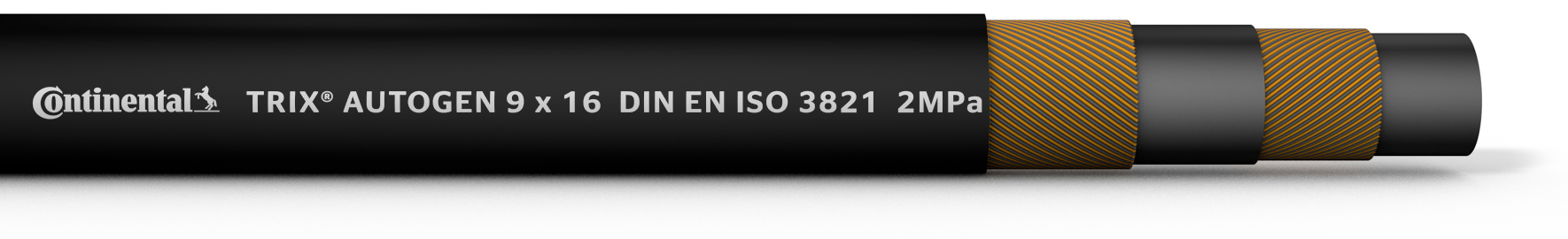

TRIX^® AUTOGEN - black

For Air, Nitrogen, Argon, CO<sub>2</sub>

STANDARD / APPROVAL

3821:2020

APPLICATIONS

Automobile industry, Construction of bridges, Foundries, Garages, Installation and heating system companies, Machinery and plant engineering, Manufacturers of welding apparatus, Shipyards, Steel and iron industry, Steel construction, Welding shops, Workshops

FLOW MEDIUM

CO₂, Air, Argon, Nitrogen, Non-flammable gas

INNER LINING

EPDM, black, non-porous, smooth

REINFORCEMENTS

Synthetic fibres

COVER

EPDM, black, smooth, ozone-resistant

FURTHER PROPERTIES

Electrically conductive, R < 10⁶ Ω/m, Fat free, free from product harmful to lacquer

WORKING PRESSURE UP TO

20 bar / 290 psi

TEMPERATURE RANGE

from -20 °C / -4 °F up to +60 °C / +140 °F

nominal width	inner-Ø	wall thickness	length	working pressure	min. burst pressure	min. bending radius	weight
zoll/inch	mm	mm	m	bar/psi	bar/psi	aprx. mm	aprx. g/m
1/4	6	3.5	40	20/290	60/870	80	170
3/8	9	3.5	40	20/290	60/870	90	210
5/8	16	4.5	40	20/290	60/870	160	385

_{Temperature resistance applies only to materials used / All technical data apply at room temperature}
