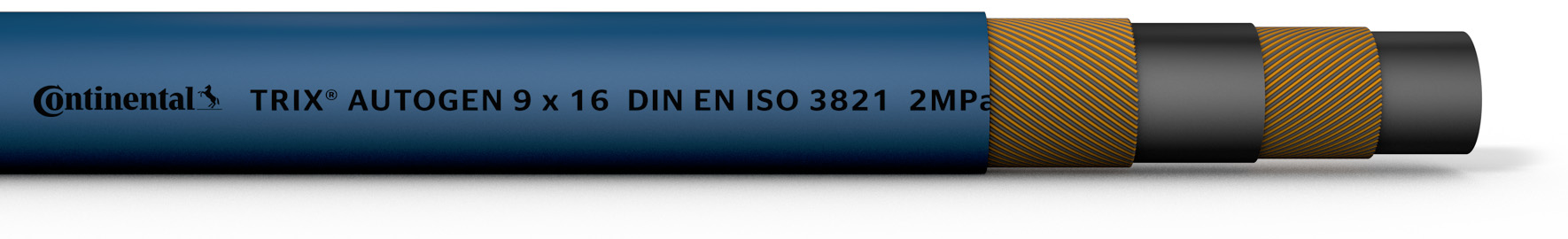

TRIX^® Oxygen hose - blue

For the safe transport of oxygen

STANDARD / APPROVAL

3821:2020

APPLICATIONS

Automobile industry, Construction industry, Construction of bridges, Foundries, Garages, Installation and heating system companies, Machinery and plant engineering, Manufacturers of welding apparatus, Over- and underground workings, Shipyards, Steel and iron industry, Steel construction, Welding shops, Workshops

FLOW MEDIUM

Oxygen

INNER LINING

EPDM, black, electrically conductive, R < 10⁶ Ω/m, non-porous, smooth

REINFORCEMENTS

Synthetic fibres

COVER

EPDM, black with coated blue thin layer, smooth, ozone-resistant

FURTHER PROPERTIES

Halogen-free

WORKING PRESSURE UP TO

20 bar / 290 psi

TEMPERATURE RANGE

from -20 °C / -4 °F up to +60 °C / +140 °F

nominal width	inner-Ø	wall thickness	length	working pressure	min. burst pressure	min. bending radius	weight
zoll/inch	mm	mm	m	bar/psi	bar/psi	aprx. mm	aprx. g/m
1/4	6	5.0	40	20/290	60/870	80	211
3/8	9	5.0	40	20/290	60/870	90	271
1/2	12	5.0	40	20/290	60/870	125	339
5/8	16	6.0	40	20/290	60/870	160	513

_{Temperature resistance applies only to materials used / All technical data apply at room temperature / High pressure and/or temperature lead to reduced component durability}
