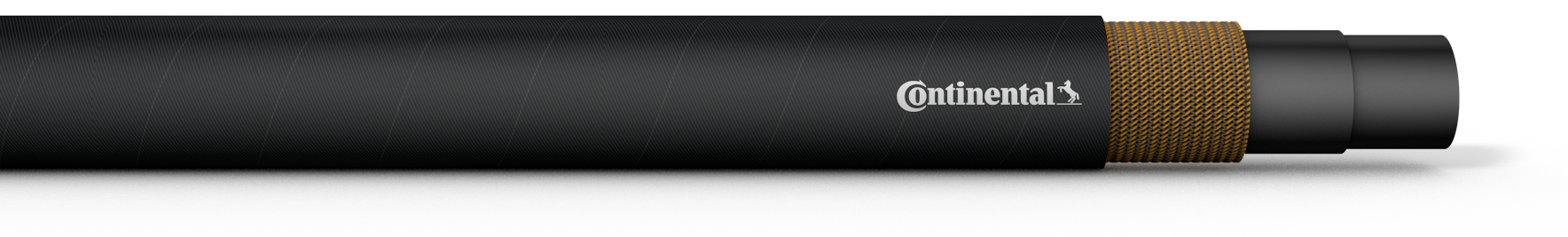

CONTI^® FUEL CKR 2240

Fuel hose

STANDARD / APPROVAL

73379 Typ B1
J30 R9

APPLICATIONS

Diesel fuel pipes

FLOW MEDIUM

Benzine, Biodiesel resistant, Diesel fuel

INNER LINING

FPM/ECO, black

REINFORCEMENTS

Aramid

COVER

ECO, black, grooved

FURTHER PROPERTIES

Highly flexible, low permeability

WORKING PRESSURE UP TO

10 bar / 145 psi

TEMPERATURE RANGE

from -40 °C / -40 °F up to +125 °C / +257 °F
up to +150 °C / +302 °F

nominal width	inner-Ø	wall thickness	length	working pressure	min. burst pressure	min. bending radius	weight
zoll/inch	mm	mm	m	bar/psi	bar/psi	aprx. mm	aprx. g/m
1/8	3	2.9	80	10/145	20/290	45	81
3/16	4	3.0	80	10/145	20/290	45	95
3/16	4	3.1	80	10/145	20/290	50	107
1/4	6	3.0	80	10/145	20/290	60	120
5/16	7	3.1	80	10/145	20/290	70	148
5/16	8	3.2	80	10/145	20/290	55	176
3/8	9	3.0	80	10/145	20/290	80	185
1/2	12	3.5	70	10/145	20/290	80	260
1/2	14	4.0	0	8/116	40/580	100	341
5/8	16	3.5	20	8/116	40/580	125	335

_{Pressure and vacuum based on room temperature / High pressure and/or temperature lead to reduced component durability / Other dimensions upon request}
