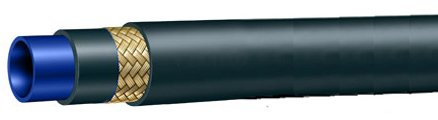

SAE 30R9 DIN 73379-3D Fuel Injection Hose

Application

SAE 30R9 DIN 73379-3D Fuel Injection HoseMedium-pressure, low-permeation fuel injection hose recommended for gasoline, ethanol, sour gas, diesel and biodiesel fuels. Its FKM fluoroelastomer tube provides excellent chemical resistance and exceptional permeation properties to meet the latest EPA and CARB emissions requirements.
FKM | SY | CSM


  • Tube: FKM fluoroelastomer rubber for low permeation and chemical resistance
  • Cover: CSM (chlorosulfonated polyethylene) resists a wide range of fuels, oils and lubricants, including biodiesel fuels; exceptional heat, ozone and weather resistance
  • Reinforcement: Single-braid aramid yarn provides exceptional dimensional stability in high-temp environments
  • Temperature range -30 °F to 257 °F (-35 °C to 135 °C)
  • Hose meets the most demanding industry standards
  • Compatible with gasoline, ethanol extended fuels, diesel and biodiesel fuels
  • Conforms to CARB requirements set forth in 13CCR section 2754
  • Exceptionally flexible for easy routing
  • Branding: Fuel Injection Hose SAE J30R9, CARB Approval No: C-U6-06-011

Size Inside Diameter Outside Diameter Working Pressure Min. Burst
Inch min. max. min. max. min. max. psi MPa
1/4 0.234 0.241 0.477 0.523 100 0.69 900 6.2
5/16 0.296 0.328 0.539 0.585 100 0.69 900 6.2
3/8 0.359 0.391 0.602 0.648 100 0.69 900 6.2
1/2 0.477 0.523 0.750 0.812 100 0.69 500 4.3

Mt Pleasant 580-200
Ostrava 580-815
ISO/TS-16949 certified location
