CONTI®VX (CONTI® V FO)

Raw-edge classic V-belts for demanding drives; compliant with DIN 2215 and DIN 7753.
  • Temperature resistant between -30°C and +70°C
  • Excellent flexibility thanks to molded teeth
  • Matched set L=L (from 1000 mm)
  • Antistatic in accordance with ISO 1813
  • Moderately oil resistant
  • Suitable for use in tropical climates
  • Dust-proof

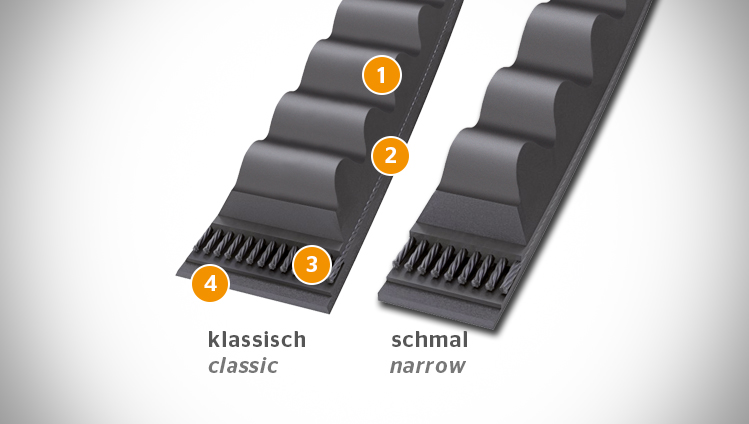

Technical specifications

Technical specifications
  • 1. Synthetic rubber bottom section
  • 2. Embedding compound
  • 3. Polyester tension member
  • 4. Cotton cover fabric



Dimensions

Classic

Profile Length range Ld (mm)
ZX 505 - 2105
AX 513 - 2697
BX 703 - 3091
CX 1132 - 3062

Narrow

Profile Length range Ld (mm)
XPZ 512 - 2800
XPA 732 - 2932
XPB 1250 - 2900
XPC 2000 - 2800
