CONTI® UNIPOWER ELASTIC/ELASTIC PLUS

Continental – injection molded multi-rib belts for simple design and cost savings.

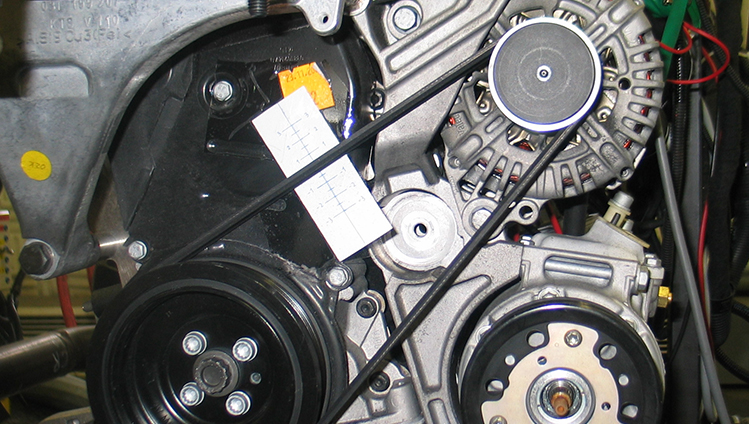

Elastic belts for front end accessory drives with up to 2 pulley drives and a generator up to 140 A.

Technical Specifications

Simplified FEAD design
Retains adequate pre-tension over its entire service life

Benefits & Features

Retains adequate pre-tension over its entire service life
No automatic tensioning system required
Simple design and less installation space required
Reduces the cost and weight of the entire system thanks to shorter belts and the fact that no tensioning system is required

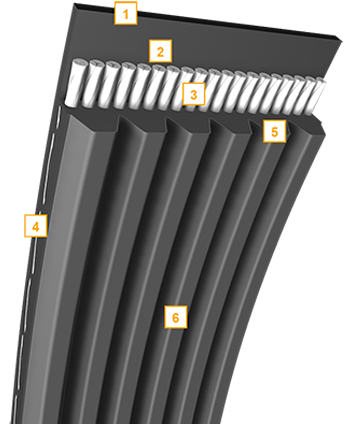

CONTI® UNIPOWER ELASTIC/ELASTIC PLUS belt construction

1 | Textured surface

2 | EPDM cover layer

Fiber-loaded

3 | Cord

PA (Elastic)
PES-LM (Elastic Plus)

4 | Embedding compound (optional)

Fiber-loaded

5 | EPDM profile compound

Fiber-free

6 | Profile surface

NFT flock technology
Fiber-filled EPDM compound (Silent Grip)
Textile coating (Tough Grip)

CONTI® UNIPOWER ELASTIC / ELASTIC PLUS

UNIPOWER ELASTIC – belts do not require a tensioning system

UNIPOWER ELASTIC-belts require no tensioning system

CONTI® UNIPOWER ELASTIC

CONTI® UNIPOWER ELASTIC

CONTI® UNIPOWER ELASTIC/ELASTIC PLUS

Technical Specifications

Benefits & Features

CONTI® UNIPOWER ELASTIC/ELASTIC PLUS belt construction

1 | Textured surface

2 | EPDM cover layer

3 | Cord

4 | Embedding compound (optional)

5 | EPDM profile compound

6 | Profile surface

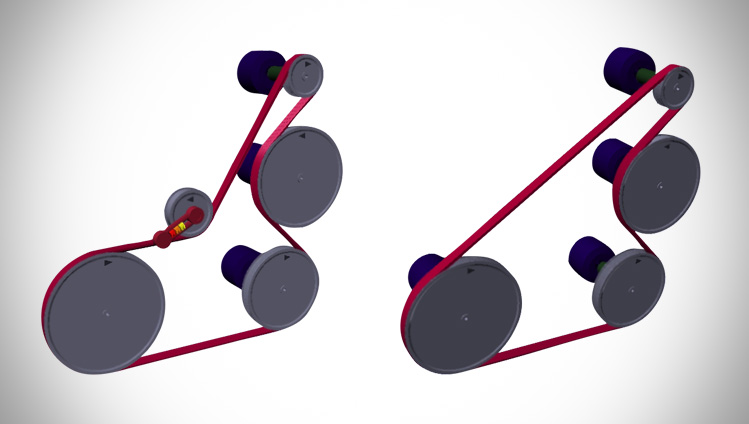

UNIPOWER ELASTIC – belts do not require a tensioning system

1 | Standard belts with tensioning system

2 | ELASTIC belt drive
