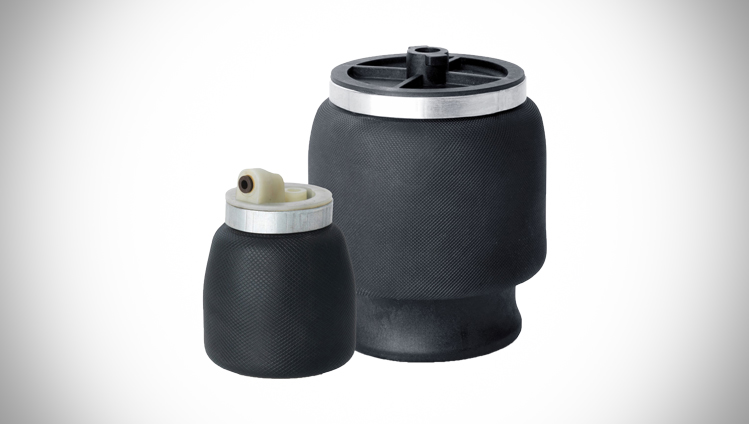

Seat Air Springs

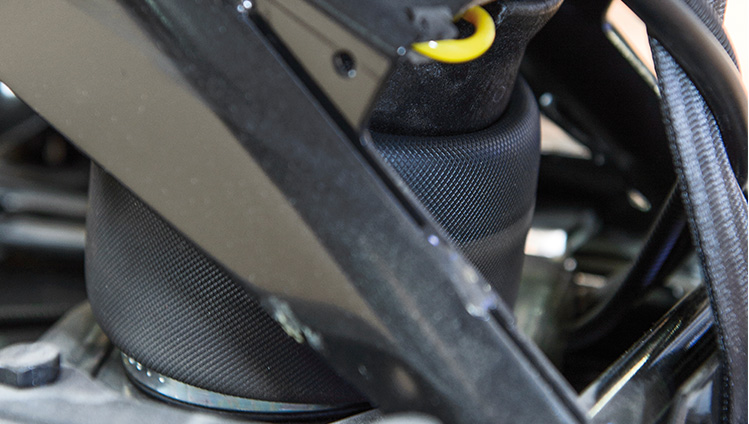

Air Spring Systems for Driver's Seats

Not only does Continental improve the driver’s workspace within all commercial vehicles, our air spring systems also significantly reduce and prevent fatigue by ensuring optimal comfort for the driver.

Continental’s aim is the same in every situation: To design and engineer a driver’s workspace that provides the most ergonomic and comfortable solution for our customers, their industries and their unique areas of application.

Technical Specifications

• Air spring diameter under operating pressure: 80 – 130 mm
• Operating pressure: 1 – 12 bar
• Over 150 cylindrical and conical air spring types
• Spring force: 1.5 – 6.5 kN
• Construction height: 73 – 125 mm
• Stroke: 25 – 80 mm

Benefits & Features

• Continental air springs transform a driver’s seat into an ergonomically designed, comfortable workplace
• The seat height is individually adjustable: Once adjusted, the seat remains in position, regardless of the driver‘s weight
• The incidence of fatigue is reduced and there are fewer risks to the driver’s health
• The air springs are relatively small and fit into every individual seat design, regardless of whether they are being used in buses, trucks, agricultural vehicles or industrial vehicles
